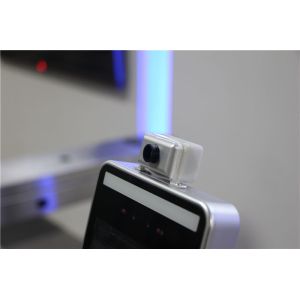

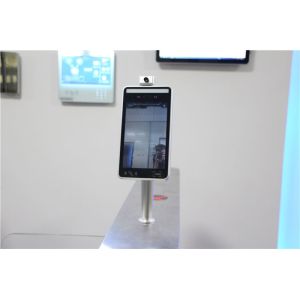

8 Inch 1.35kg Large Database Face Recognition Attendance Machine
Description:
With a gate, can achieve illegal intrusion alarm, timed open the door, close the door, emergency open and close the door, multiple verification of the door and other useful functions. Applicable to the relatively large flow of people in and out of the channel, image acquisition, face detection, face tracking, live body face verification in one machine, a variety of detection The mode can be set. Such as: temperature only mode, mask plus temperature measurement mode. White list can be set for internal employees, and another temporary visitor function.
In order to adapt to a variety of indoor and outdoor environments, the terminal has a built-in dual LED fill light, fully adapt to the harsh environment such as bright backlight and strong light. When used in outdoor environments, please calibrate the equipment manually first due to the large temperature difference.
The advanced thermal imaging temperature measurement module can accurately identify people with fever, and in crowded places such as communities or campuses, it can find out the suspected people in time to prevent them from getting into trouble.
Feature:
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 100,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:N comparison recognition rate is more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is 98.3%@1% misrejection rate. Face recognition pass speed is less than 1 second.
3. Supports accurate face recognition and comparison while wearing a mask
4. Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
5. It only takes a few seconds for detection, and supports automatic alarm
6. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
7. Attendance data is exported in real time.
8. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card swipping, two-dimensional code reader, etc.
9. The documentation is complete and supports secondary development.
10. Support system level, APP offline level, APP + background network level multiple API docking.
| Dimensions | 257mm*138mm*26.5mm |
| Package Dimensions | 365mm*230mm*80mm |
| Weight | 1.35kg |
| Package Weight | 1.8kg |
| Body Temp Measurement | 8*8 Thermopile,Distance: 30~50cm,Accuracy ±0.2℃~±0.5℃ |
| CPU | ARM 4 Cores, Cortex-A17, 1.8GHz |
| RAM | 2GB |
| Camera | RGB&AI Dual WDR Cameras, Micron AR0230 Sensors |
| Sockets | RS485,RS232,Wiegand26/34,TTL,On-Off signal(D1,D0),LAN,WIFI |
| Extensibility | Connect to cloud, support background processing |
| Facial Recognition | 1:1,1:N |
| Operating Temperatures | Face Recognition -15~60℃ Body Temperature Measurement:18~35℃ |
| Operating Humidity | ≤90% |
| Rated Voltage & Current | DC12~16V, 2A |
| Certification | CE FCC |
Application:
Suitable for office areas, hotels, access gates, office buildings, schools, shopping malls, shops, communities, public service and management projects and other places where face access control is required.
Competitive Advantage:
1. We can offer OEM&ODM services
2. All software free provide , and technical support after-service
3. long time warranty: 3 Years
4. 24 hours online service
